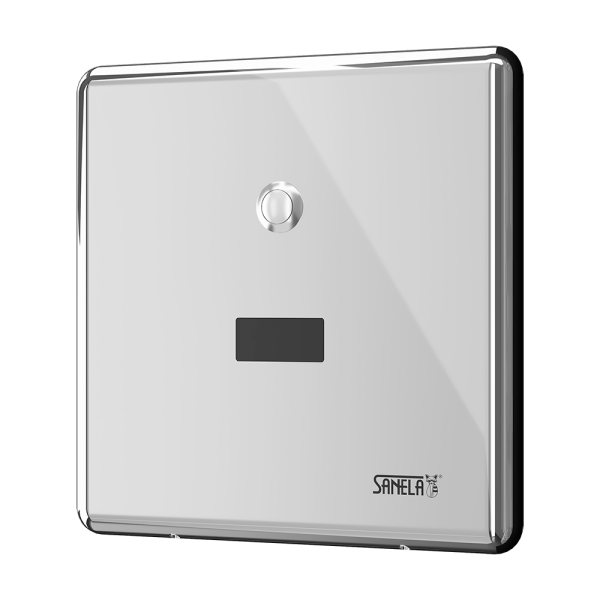

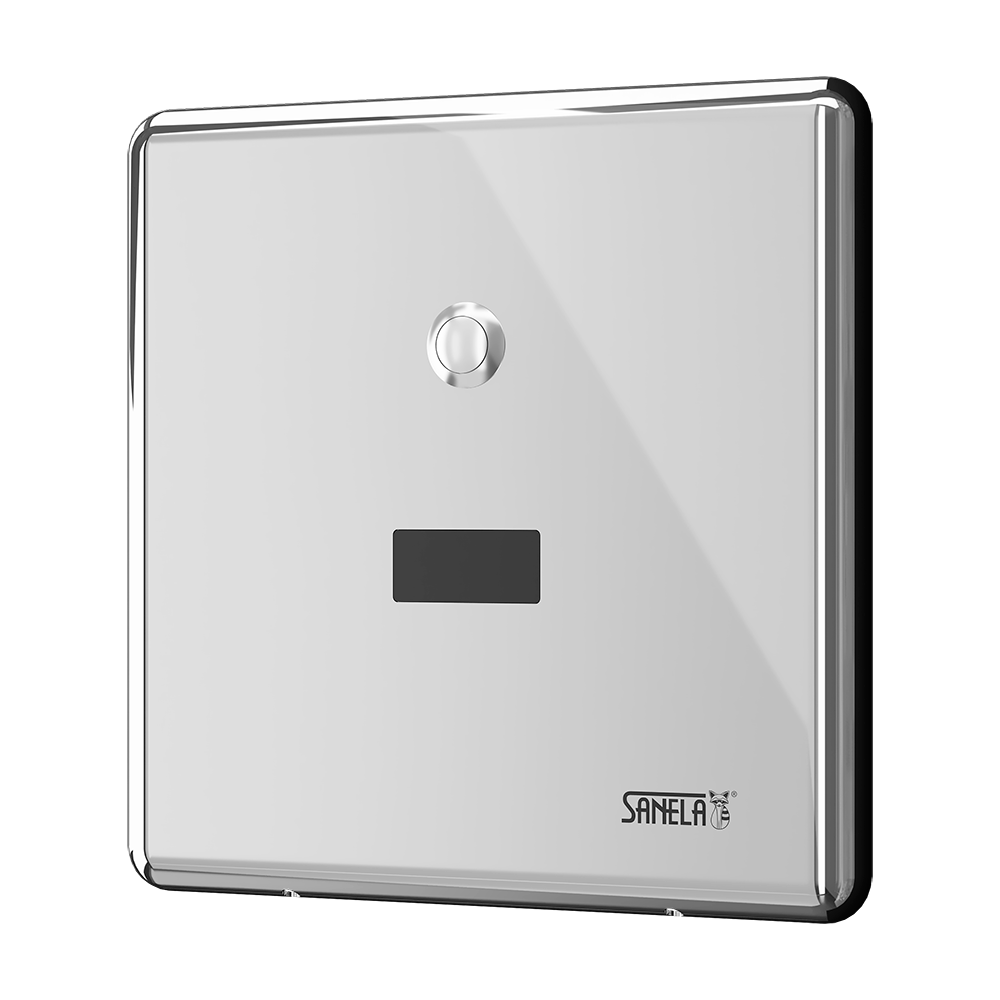

SLW 01NK
Toilet flushing unit for pressured water, polished finish, 24 V DC
Characteristics
- includes Bluetooth control (Sanela Control app available for download)
- is intended for pressurized water from the supply
- responds to the presence of a person in front of the sensor at a distance of max. 0.7 m from the sensor for longer than 7.5 s
- flushing occurs after the person leaves the monitored zone “short flush” (2 s) = the presence time of a person in the monitored zone is from 7.5 s to 45 s “long flush” (5 s) = the presence time of a person in the monitored zone is longer than 45 s
- the duration of the long flush is adjustable from 0.5 to 15.5 s
- possibility of additional manual flushing by electro-mechanical button (e.g. during cleaning)
- automatic flushing after 24 hours from the last flush
- electromagnetic valve with water flow regulation option, possibility of flushing by turning the valve coil (e.g. in case of power failure)
- parameter settings and communication with the electronics via Sanela Control app (Bluetooth) or the SLD 03
- material stainless steel AISI 304 (1.4301)
- polished finish
- Order number: 04015
I am interested in more information:
Supply specification
SLW 01NK - Supply No. 04015 - stainless steel cover with electronics including Bluetooth module, stainless steel mounting box with union and electromagnetic valve
Technical information
| Flushing type: | for a pressured water |
| Material: | stainless steel |
| Power supply: | 24V DC |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 145 x 155 x 100 mm |
| Weight: |
2 kg |
| Material thickness: | 1 mm |
| Power input: |
7 W |
| Range: |
0,6 - 0,75 m |
| Recommended working pressure: |
0.15 - 0.6 MPa |
| Flow rate: |
70 l/min at pressure
0.15 MPa
(informative value) |
| Water inlet: | cross-section
min. 32 mm (PN 16)
external thread
min. G 1″ |
| Water outlet: | external thread
min. G 1″ |
Downloads
- Mounting instructions (3.47 MB)
- Catalogue list (163.23 kB)
- 2D Drawing (114.08 kB)
