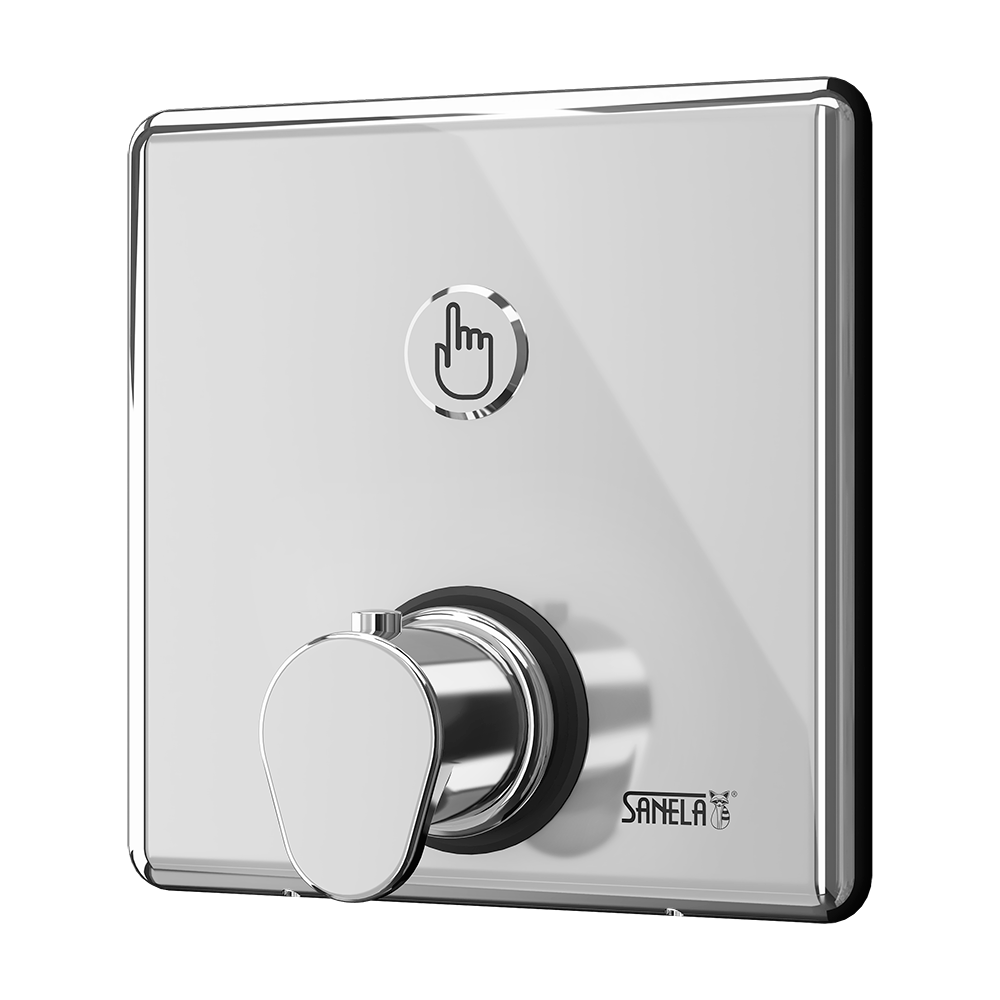

SLZA 20PTA
Shower control with piezo button - for premixed water, brushed
Characteristics
- hygienic flush
- anti-vandal design
- shower control with piezo button for coin-operated and token-operated machines with index N
- is intended for supplying hot and cold water, temperature adjustment with thermostatic cartridge
- with anti-scald protection
- hot water shut-off in case of cold water failure within 1 s
- polished surface
- Order number: 88202
- EAN: 8591385882029
I am interested in more information:
Supply specification
SLZA 20PTA - Supply No. 88202 - stainless steel cover, stainless steel mounting box with screw connection, solenoid valve, ball valve and thermostatic cartridge
Technical information
| Stainless steel cover dimensions: | 170 x 170 x 10 mm |
| Mounting box dimensions: | 155 x 155 x 82 mm |
| Recommended working pressure: | 0,1 - 0,6 MPa |
| Flow rate: | 12 l/min. (inf. data) |
| Water inlet: | internal thread G 1/2“ |
| Water outlet: | internal thread G 1/2“ |
