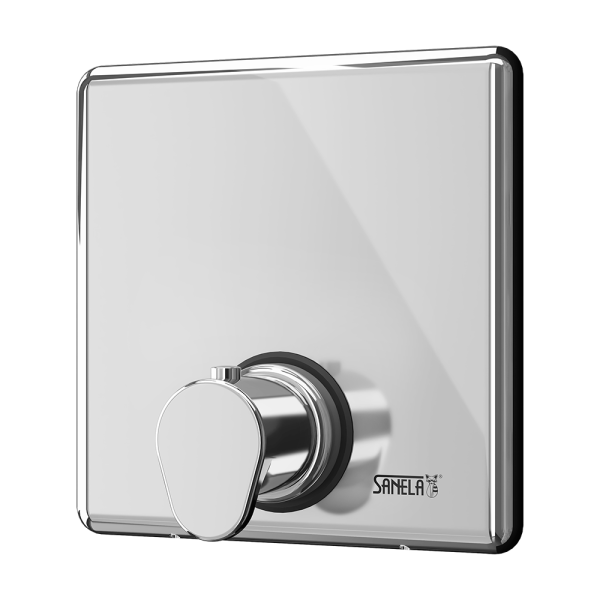

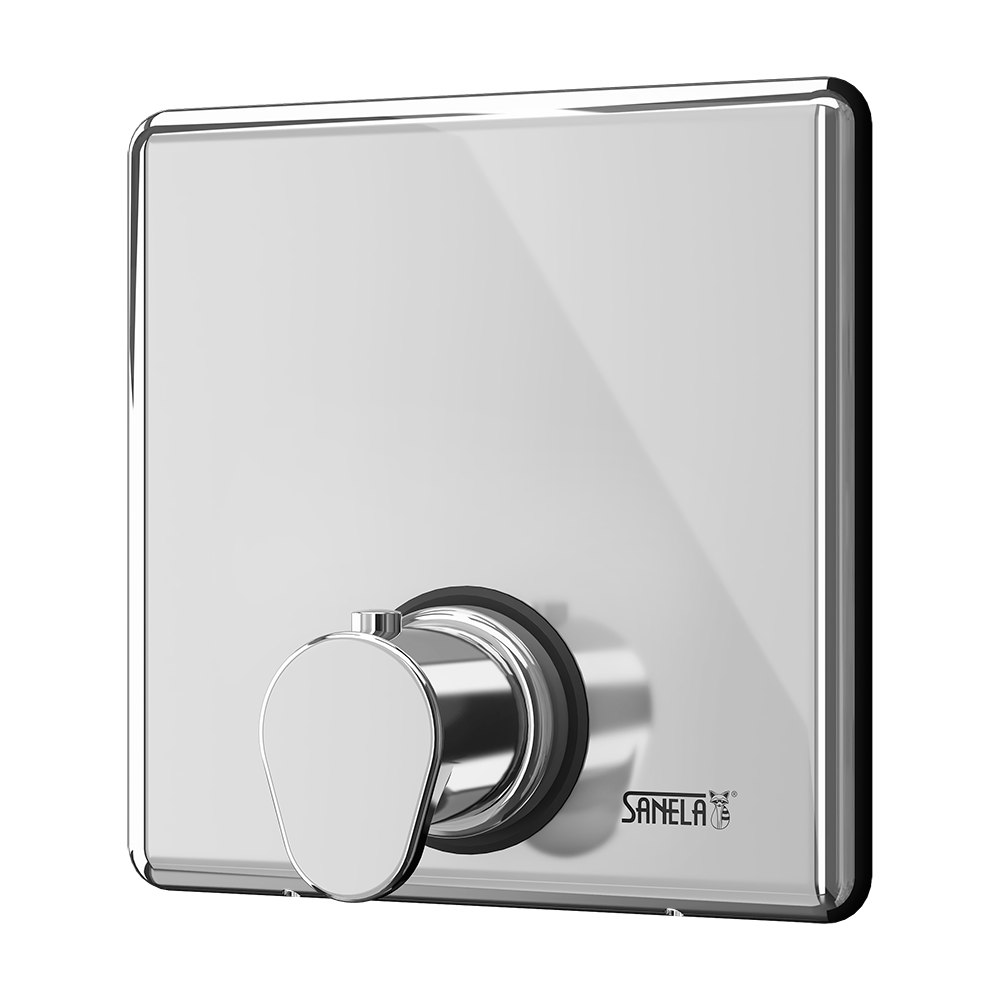

SLZA 20TA

Shower control without piezo button - for premixed water, brushed

Characteristics

  • hygienic flush
  • anti-vandal design
  • shower control for coin and token machines with index M
  • is intended for hot and cold water supply, temperature adjustment with thermostatic cartridge
  • with anti-scald protection
  • hot water shut-off in case of cold water failure within 1 s
  • polished finish
  • Order number: 88201
  • EAN: 8591385882012
I am interested in more information:

Supply specification

SLZA 20TA - Supply No. 88201 - stainless steel cover, stainless steel mounting box with screw connection, solenoid valve, ball valve and thermostatic cartridge

Technical information

Stainless steel cover dimensions: 170 x 170 x 10 mm
Mounting box dimensions: 155 x 155 x 82 mm
Recommended working pressure: 0,1 - 0,6 MPa
Flow rate: 12 l/min. (inf. data)
Water inlet: internal thread G 1/2“
Water outlet: internal thread G 1/2“
