SLW 01PBA

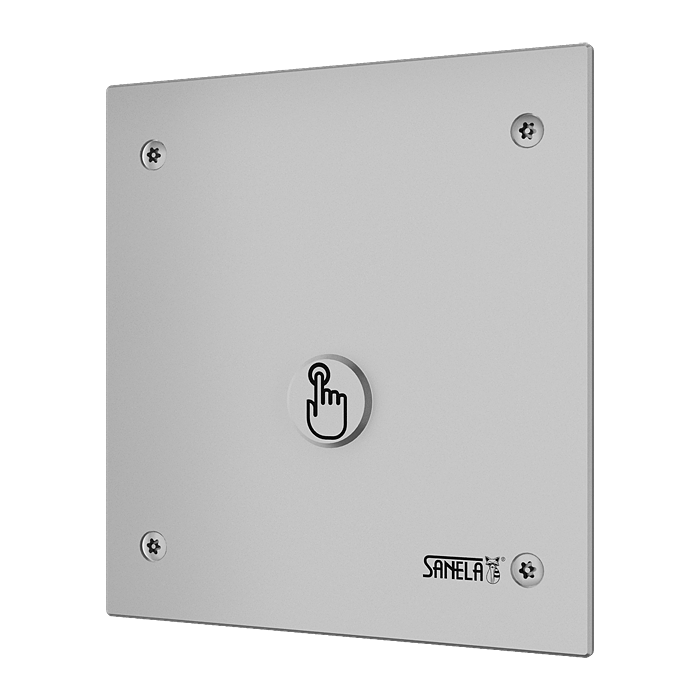

Piezo toilet flushing unit for pressured water with vandal-proof cover, 6 V
Characteristics
- vandal-proof
- suitable for prisons
- special vandal-proof stainless steel cover, thickness 3 mm, security screws
- is intended for pressurized water from the supply
- responds to a gentle press of the piezo button with immediate flushing
- flush duration of the flush is adjustable from 0.5 to 15.5 s, standard 8 s
- automatic flush after 24 hours from the last flush
- electromagnetic valve with water flow regulation option, possibility of flushing by turning the valve coil (e.g. in case of power failure)
- monitoring of battery capacity
- parameter setting using remote control SLD 04
- brushed finish
- Order number: 14018
- EAN: 8591385140181
I am interested in more information:
Supply specification
SLW 01PBA - Supply No. 14018 - stainless steel cover with piezo electronics, stainless steel mounting box with screw coupling and solenoid valve, outlet fitting with gasket, torx screw (4 pcs.), set of 4 AA alkaline batteries, 1.5 V, 2700 mAh
Technical information
| Stainless steel cover dimension: | 160 x 170 x 3 mm |
| Mounting box dimensions: | 145 x 155 x 100 mm |
| Operating voltage: | 6 V |
| Power input: | 3 W |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Rate of flow: | 70 l/min. by the pressure
0,15 MPa (inf. data) |
| Water inlet: | cross-section min. 32 mm
(PN 16)
external thread min. G 1″ |
| Water outlet: | external thread min. G 1″ |
Downloads
- Mounting instructions (3.1 MB)
- Catalogue list (120.56 kB)
- 2D Drawing (324.34 kB)
