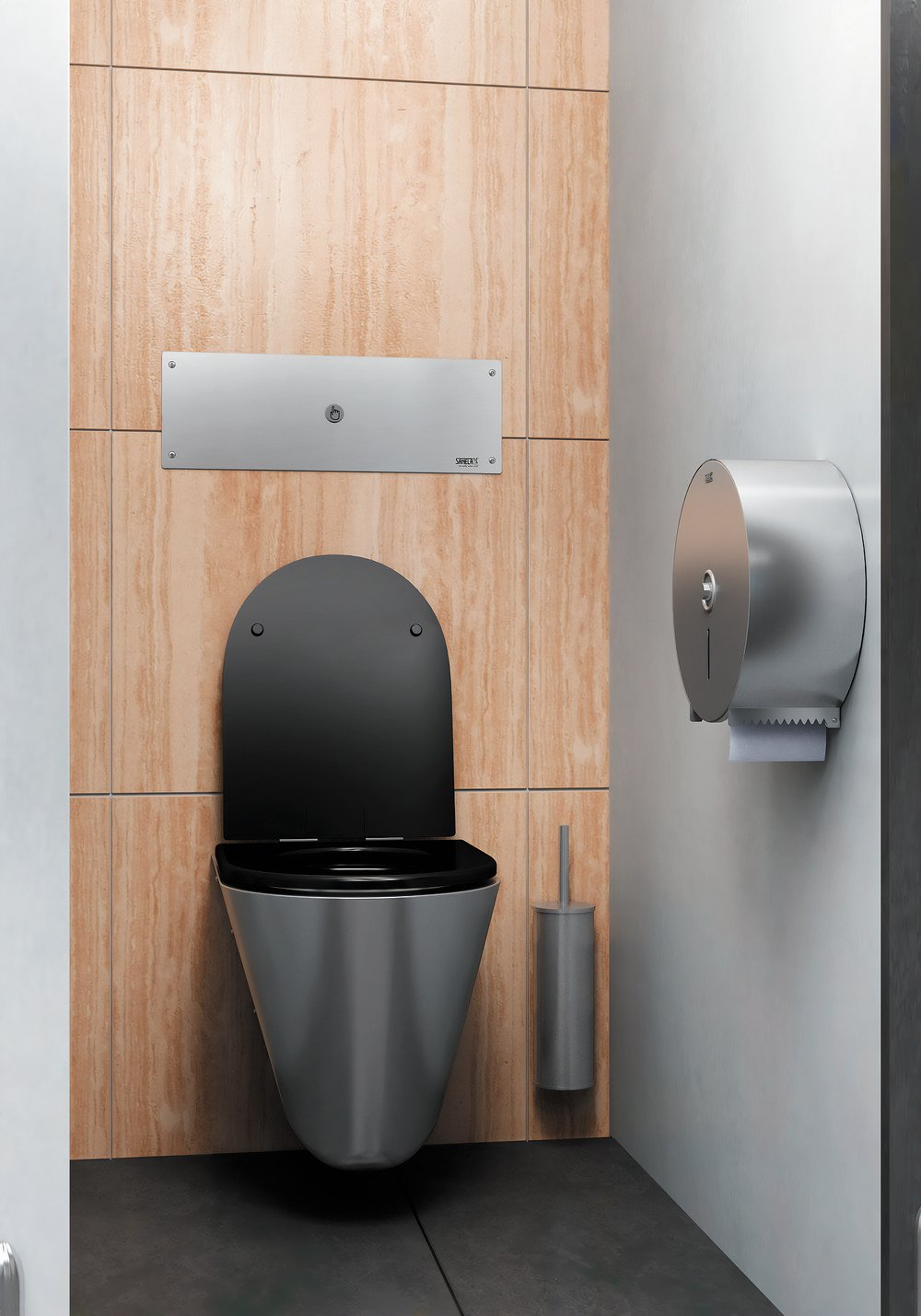

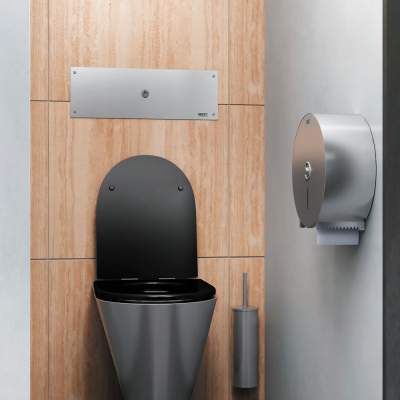

SLW 02PA
Piezo toilet flushing unit with vandal-proof cover, including the frame SLR 21, 24 V DC
Characteristics
- vandal-proof
- suitable for prison
- special vandal-proof stainless steel cover, thickness 3 mm, safety screws
- water flows after soft push of the piezo button
- adjustable flushing time 0,5 - 15,5 s, standard 8 s
- automatic hygiene flush after each eighth flush or 24 hours non using of toilet
- parameter adjustment using by the remote control SLD 04
- including the mounting frame SLR 21
- Order number: 14026
I am interested in more information:
Supply specification
SLW 02PA - Supply No. 14026 - stainless steel cover with piezo electronics, stainless steel holder of electromagnet, electromagnet, torx screws (4 pcs.), mounting frame with tank SLR 21
Technical information
| Flushing type: | from tank in mounting frame |
| Material: | stainless steel |
| Power supply: | 24V DC |
| Control: | piezo |
| Stainless steel cover dimension: | 500 x 170 x 3 mm |
| Frame dimension: | 510 x 1120 - 1290 x 155 - 235 mm |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (7.98 MB)
- Catalogue list (205.41 kB)
- 2D Drawing (134.64 kB)
