SLP 02K

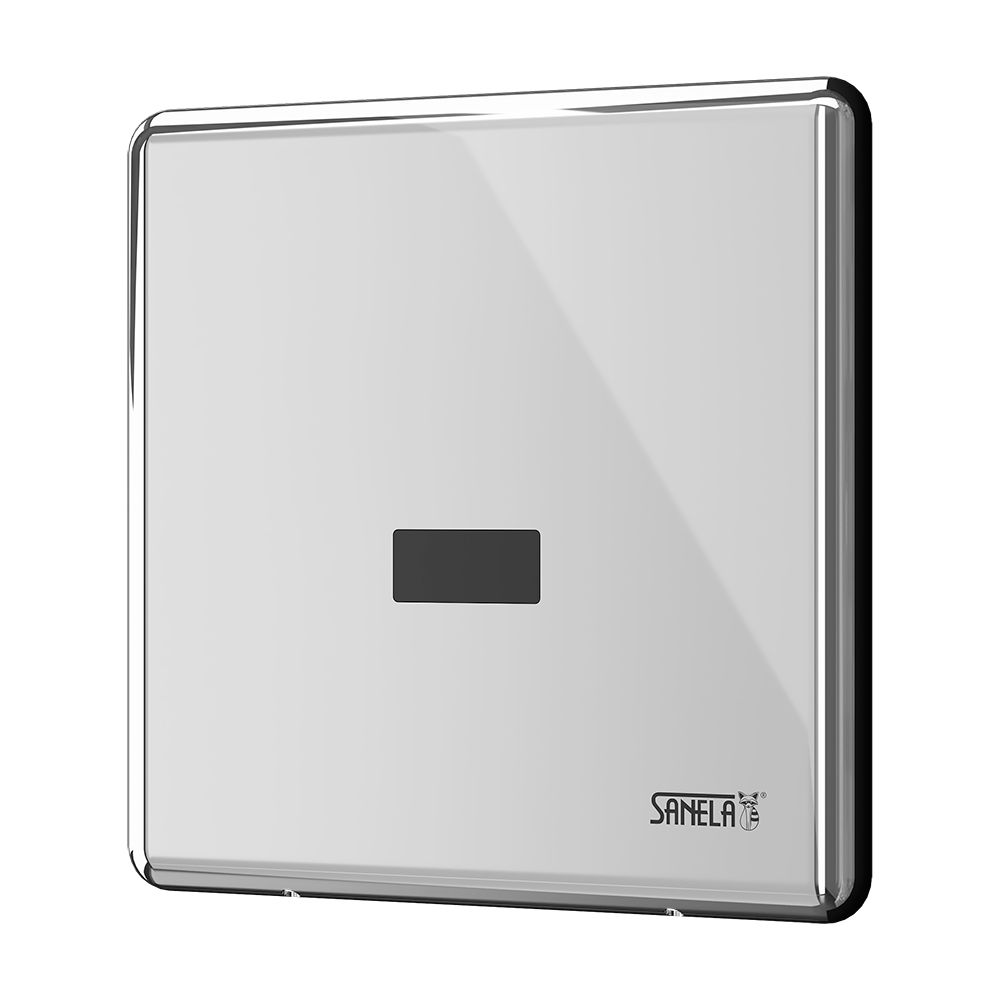

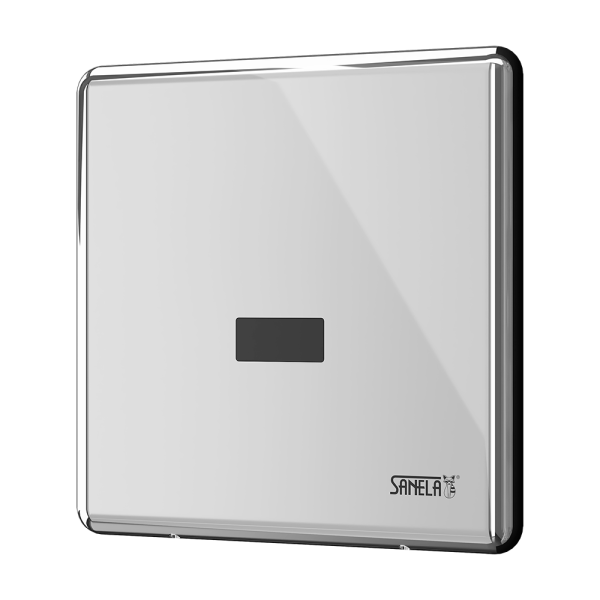

Urinal infra-red flushing unit with a mounting box, polished finish, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela Control app available for download)
- responds to the presence of a person in front of the urinal at a distance max 0.7 m from the sensor for longer than 7.5 s
- flushing occurs after the person leaves the detected zone
- flush time is adjustable from 0.5 to 15.5 s
- parameter settings and communication with the electronics via Sanela Control app (Bluetooth) or the SLD 03
- automatic flushing 24 hours after the last valve activation
- possibility to regulate water flow with a ball valve
- polished finish
- Order number: 01022
I am interested in more information:
Supply specification
SLP 02K - Supply No. 01022 - stainless steel cover with electronics including Bluetooth module, plastic installation box with union nut, solenoid valve and ball valve
Technical information
| Power supply: | 24V DC |
| Location: | above the urinal |
| Flushing unit: | without urinal |
| Control: | infra-red |
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Power input: | 7 W |
| Active range: | 0,6 - 0,75 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (informative value) |
| Water inlet: | external thread G 3/4" |
| Water outlet: | external thread G 3/4" |
Downloads
- Mounting instructions (2.68 MB)
- Catalogue list (211.01 kB)
- 2D Drawing (319.91 kB)
