SLP 05KBX

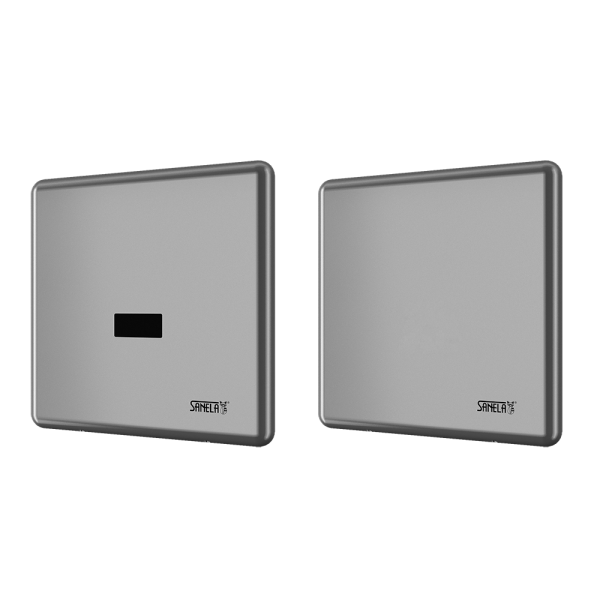

Infra-red flushing unit for a group of urinals, brushed, 6 V
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- is designed for flushing a group of urinals at once
- responds to the presence of people in front of the urinals in the axis of the sensor (approx. 200 mm from the front edge of the urinal) for longer than 7.5 s
- sensor range to the reflective foil up to 3 m (option to extend the range on request)
- all urinals will be flushed after all persons have left the monitored zone
- flush time is adjustable from 0.5 to 15.5 s
- parameter settings and communication with the electronics via Sanela control app (Bluetooth) or the SLD 03
- automatic flushing 24 hours after the last valve activation
- battery status monitoring
- brushed finish
- Order number: 01057
- EAN: 8591385010576
I am interested in more information:
Supply specification
SLP 05KBX - Supply No. 01057 - stainless steel cover with electronics including Bluetooth module, plastic installation box with electronics, stainless steel installation box with fittings and solenoid valve, stainless steel cover (for covering the box with valve), reflective foil, 4 pcs AA alkaline batteries 1.5 V 2700 mAh
Technical information
| Stainless steel cover dimensions: | 170 x 170 x 10 mm |
| Dimensions: | |
| - plastic box: | 140 x 140 x 75 mm |
| - stainless steel box with valve: | 145 x 155 x 100 mm |
| Supply voltage: | 6 V |
| Range: | 0,3 - 3 m |
| Recommended working pressure: | 0,15 - 0,6 MPa |
| Flow rate: | 70 l/min at pressure 0.15 MPa (informative value) |
| Water inlet: | cross-section min. 32 mm (PN 16) external thread min. G 1“ |
| Water outlet: | external thread G 1“ |
