SLP 02KZX

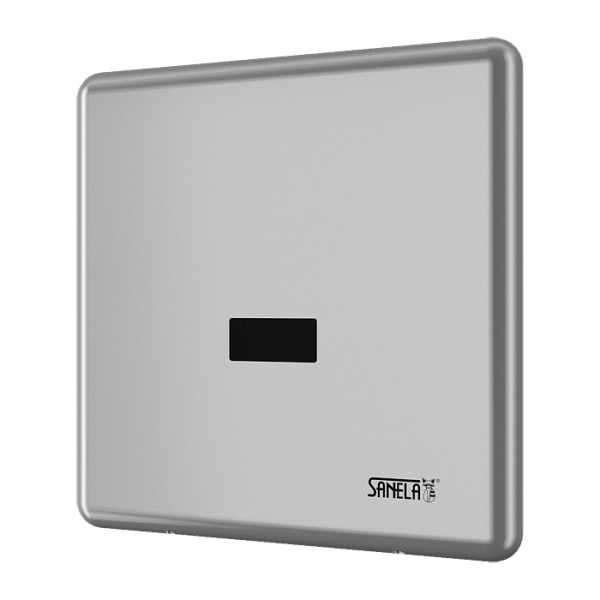

Urinal infra-red flushing unit with a mounting box and integrated power supply, brushed, 230 V AC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- responds to the presence of a person in front of the urinal at a distance max 0.7 m from the sensor for longer than 7.5 s
- flushing occurs after the person leaves the detected zone
- flush time is adjustable from 0.5 to 15.5 s
- parameter settings and communication with the electronics via Sanela control app (Bluetooth) or the SLD 03
- automatic flushing 24 hours after the last valve activation
- possibility to regulate water flow with a ball valve
- brushed finish
- Order number: 11022
- EAN: 8591385110221
I am interested in more information:
Supply specification
SLP 02KZX - Supply No. 11022 - stainless steel cover with electronics including Bluetooth module, plastic installation box with union, solenoid valve and ball valve, power supply
Technical information
| Stainless steel cover dimension: | 170 x 170 x 10 mm |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Operating voltage: | 230 V AC/50 Hz |
| Active range: | 0,6 - 0,75 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.97 MB)
- Catalogue list (110.01 kB)
